PV200 Complete Kit

A compact solar PV tester with I-V curve tracing

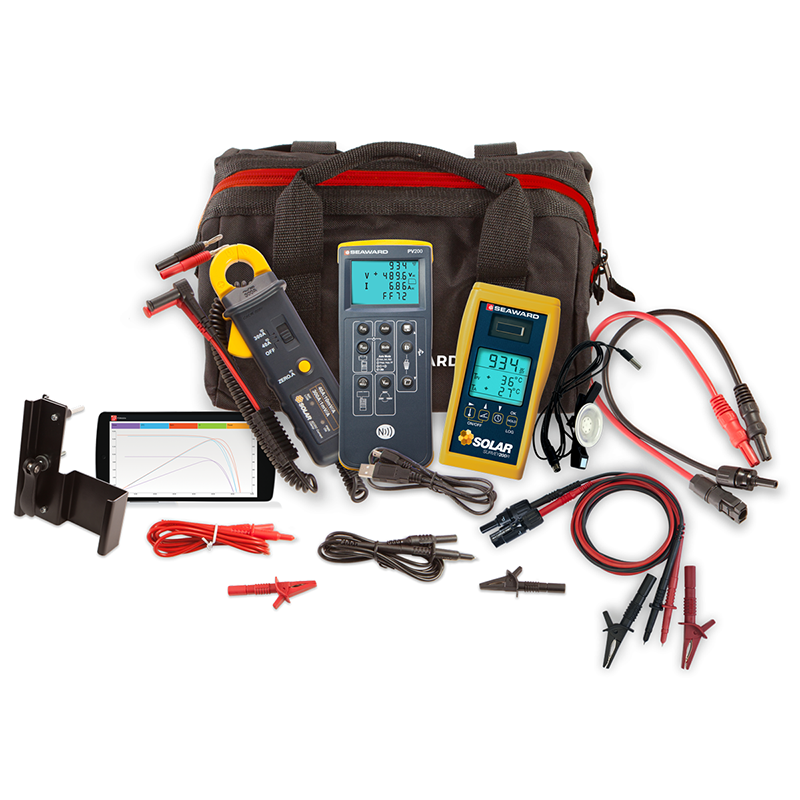

Complete Kit includes:

Seaward Installation PV200 instrument.

2 x MC4 test lead adaptors.

2 x Combiner box test probes and detachable alligator clips (MC4).

2 x Test leads, with test probes and detachable alligator clips (4mm).

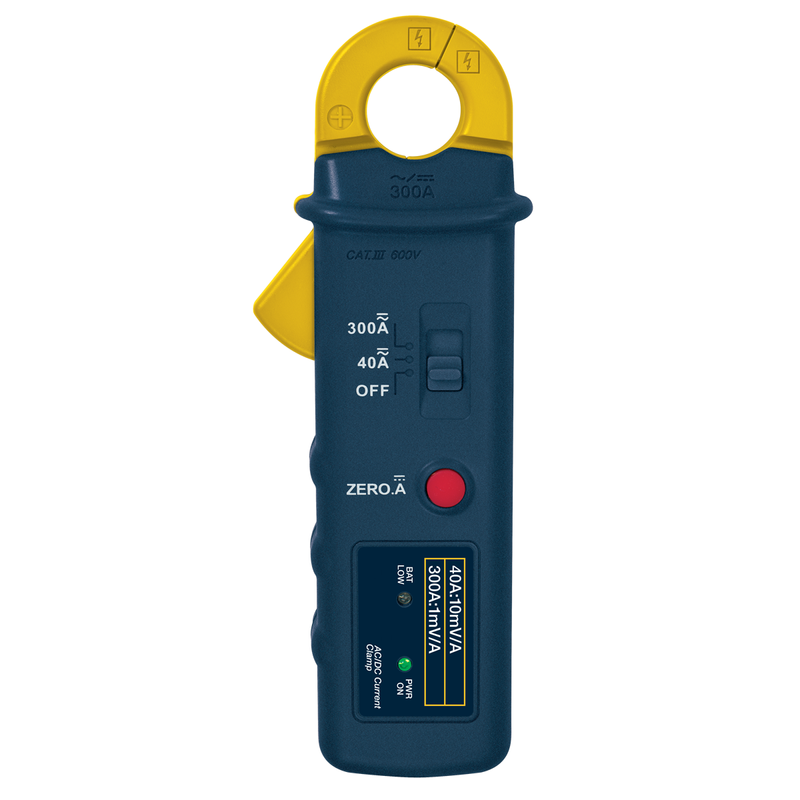

AC/DC current clamp.

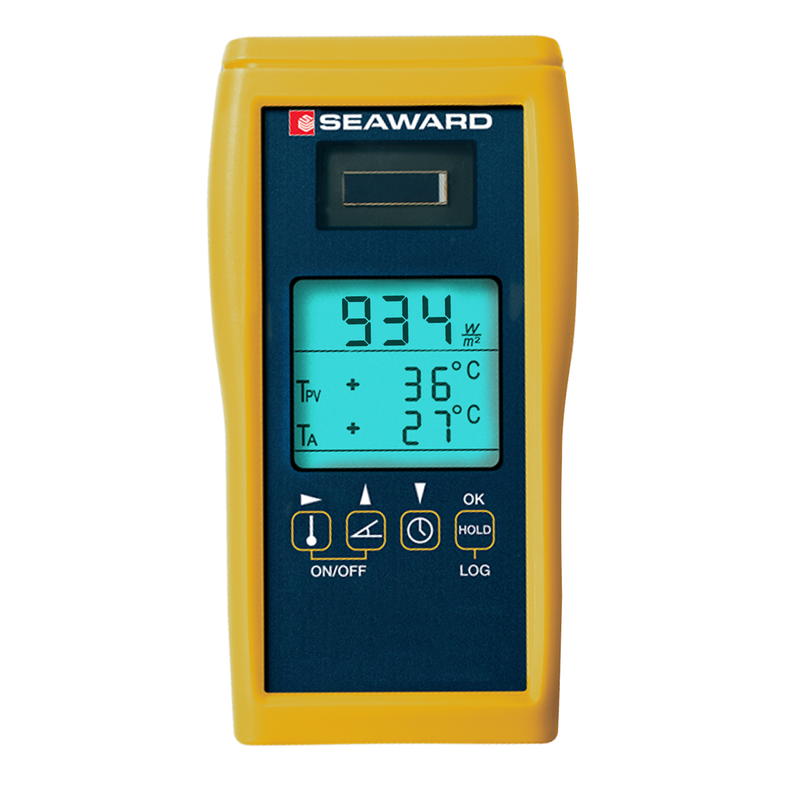

Solar Survey 200R irradiance meter and temperature probe.

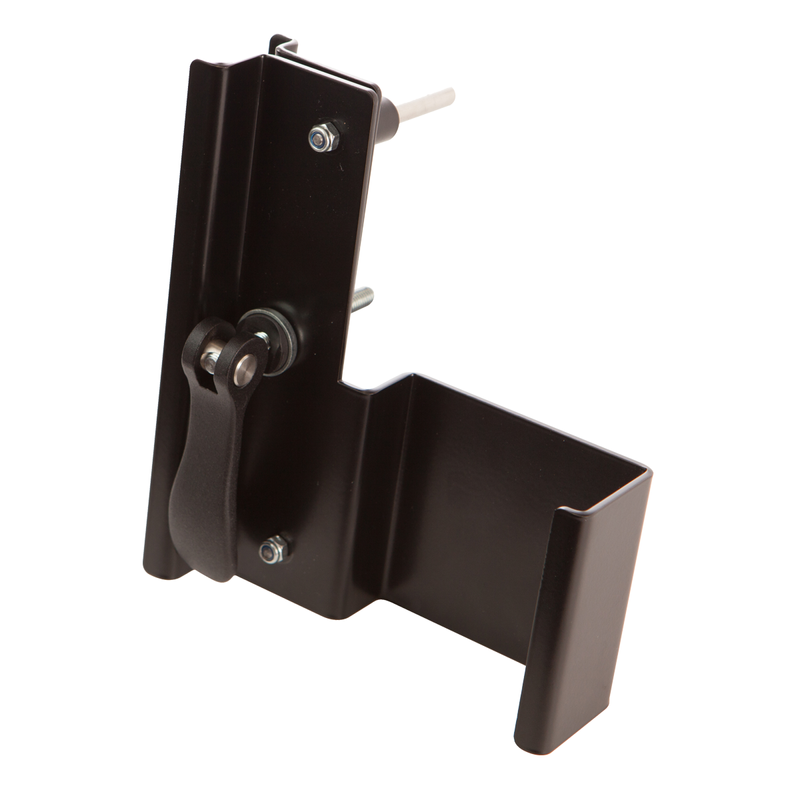

Solar Survey 200R mounting bracket.

Rugged carry bag.

Quick Start Guide.

UKAS Calibration Certificate (PV200).

2 year warranty.

SolarCert PC software.

Optional Accessories:

Solar Power Clamp.

MC4 fused / unfused test leads.

Features

All-in-one commissioning tests and I-V curve tracing.

Automatic fill factor calculation.

Ground (earth) continuity measurement with test lead null.

PV string open circuit and maximum power point voltage measurements up to 1000V DC.

PV string short current up to 15ADC.

PV array insulation test at 250/500/1000V.

Tests individual PV modules or strings.

Memory for up to 999 records with USB download to PC.

Instant NFC data transfer using the PVMobile app.

High contrast display, visible in bright light.
