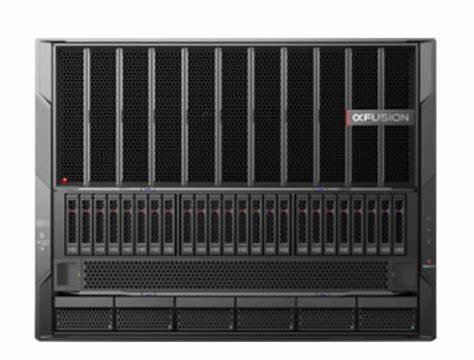

8U AI server

2 x 4th/5th Gen Intel^® Xeon^® Scalable processors, with up to 385 W TDP per processor

Emmitsburg PCH

32 x DIMMs, up to 256 GB per DIMM, up to 5600 MT/s

Hot-swappable drive configurations:
• Up to 8 x 2.5″ SAS/SATA drives
• Up to 8 x NVMe SSDs
• 2 x M.2 SSDs

RAID 0, 1, 10, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures;
RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

8 x GPU modules

1 x OCP 3.0 NICs, which can be configured as required and supports orderly hot swap

Up to 13 x PCIe slots, including 12 x standard PCIe slots, 1 x OCP 3.0 slots

GPU: 10 x 54 V fan modules in N+1 redundancy; CPU: 5 x 12 V fan modules in N+N redundancy

• 54V

6 x 3000 W Titanium hot-swappable PSUs，Cabinet-level N+N redundancy backup with 2+2, 3+1, 3+3, 4+2, and 5+1 configuration based on the load is supported.

• 12V

2 x 3000 W Titanium or 2000 W Titanium/Platinum hot-swappable PSUs in 1+1 redundancy

The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.

Ubuntu, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, and others . For more, click here

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, and secure boot

5°C to 35°C (41°F to 95°F)

CQC, CE, and RoHS

L-shaped guide rails

352.8mm×447mm×925mm (13.89 in. x 17.60 in. x 36.42 in.)
