Megger MFT1735

Short Description:

Megger MFT1735, Multifunction Tester The Megger MFT1735 is an electrical install

Brand: Megger
Power Supply: Battery: Primary 6 x 1,5 V cells IEC LR6 type (AA alkaline,). Battery: Rechargeable: 6 x 1.2 VNiMH cells EC HR6. Display shows rechargeable [NiMH] when the battery type is changed in setup option (Section 10).
Voltage: Intrinsic accuracy: ±2% ±1 V EN61557-1 Range: 10 V to 600 V Phase rotation indication. Max service error: ±5% ±2 digits
Temperature: Operational range: -10 °C to +55 °C Storage range: -25 °C to +70 °C
Humidity: 90% R.H. at +40 °C max.
Dimensions: 150 mm high x 85 mm wide x 235 mm deep (6 in. x 3.5 in. x 9.5 in.)

Product Details

Megger MFT1735, Multifunction Tester

The Megger MFT1735 is an electrical installation multifunction tester with additional earth resistance tests built-in. This particular tester is ideal for anyone who does a lot of earth ground or lightning protection testing, but also carries out general installation tests.

The MFT1735 has the rugged build quality that you'd expect from Megger, along with a simple control panel for test selection. Test buttons are located on either side, making it easy to use for left and right handed users. This is a downloading model, with results stored in the tester for download to the Megger Lite Onsite software, or other Powersuite packages. Based on the design of the MFT1730, the 1735 features Bluetooth communication, so test results can be transmitted in realtime to a laptop enabled PC or smartphone.

There is a large, clear LCD display with backlight and it also features the Megger patented analog arc. Key values are displayed when carrying out a test, such as the output voltage for insulation testing as well as the resistance value. An audible and visual live circuit warning notify you if voltage exceeds a safe level for test and prevents the test from running.

As a top end model, the MFT1735 will test B type RCDs and features true RMS voltage readings. It features IP54 protection and a CAT IV safety rating. The tough design ensures the tester can withstand accidental misuse and voltage transients.

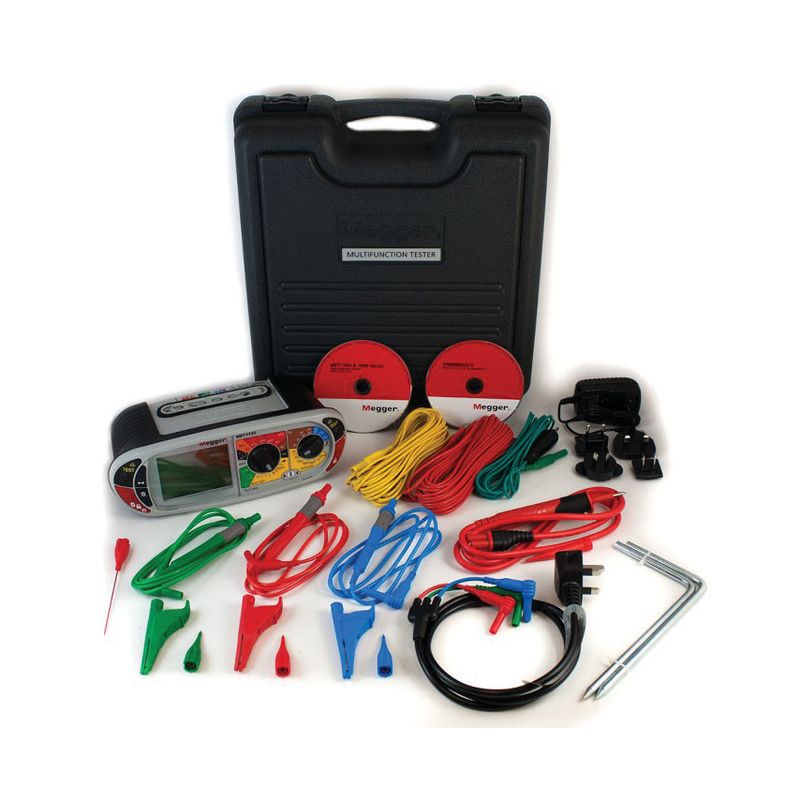

The tester is supplied with a 3 way test lead set, mains test lead, earth spike kit with 3 leads & two spikes, remote test probe, rechargeable batteries, mains charger, hard carry case & calibration certificate.

FEATURES

Two and three wire non-trip loop testing for RCD protected circuits.

Type-B RCD and 3-phase RCD testing for industrial applications with no Earth.

3-terminal earth test and stakeless testing for earth electrode resistance measurement **

Internal memory and Bluetooth® communications.

Simple colour-coded test selection and large clear back-lit display for ease of use.

EN61010 CATIV safety ratings and tough IP54 case.
