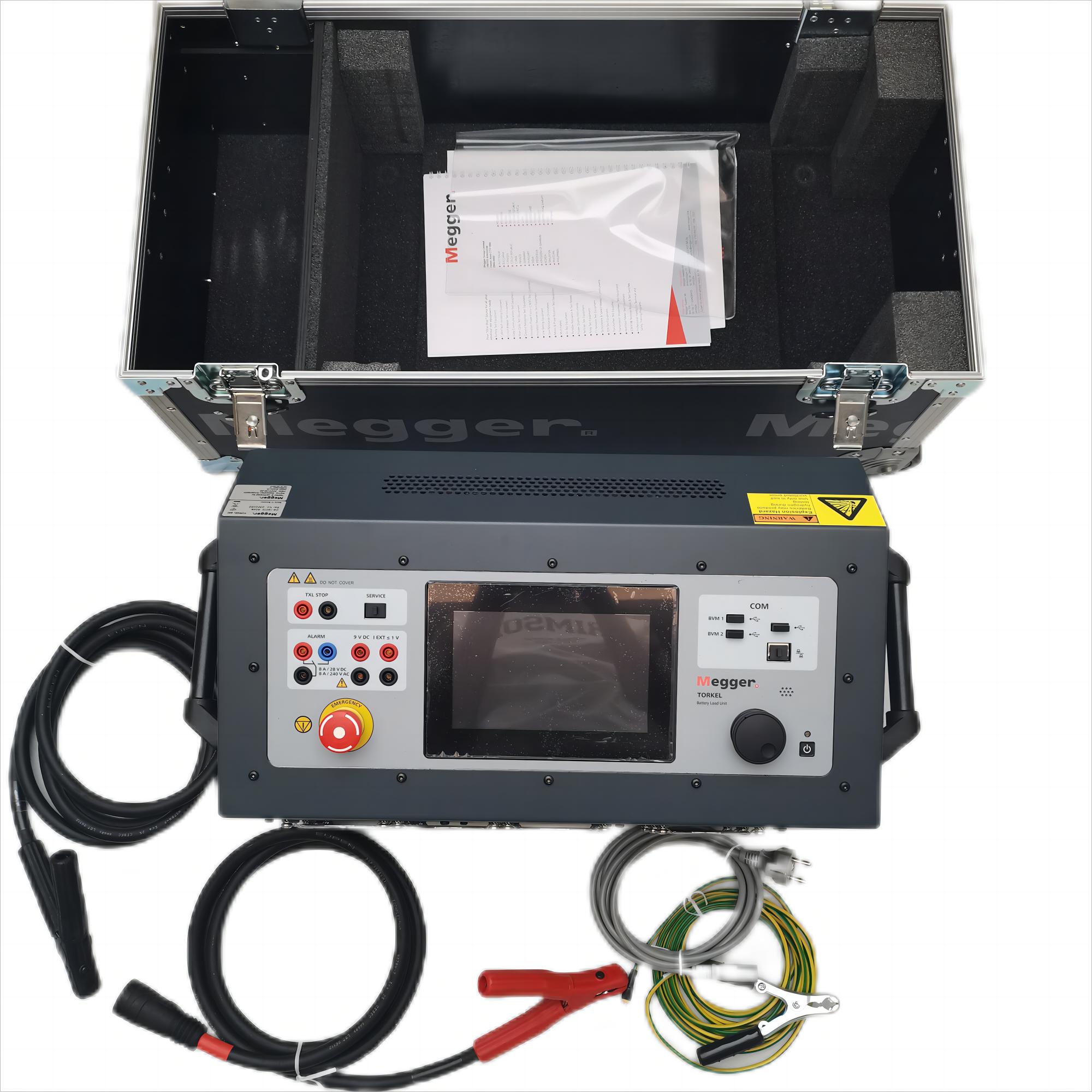

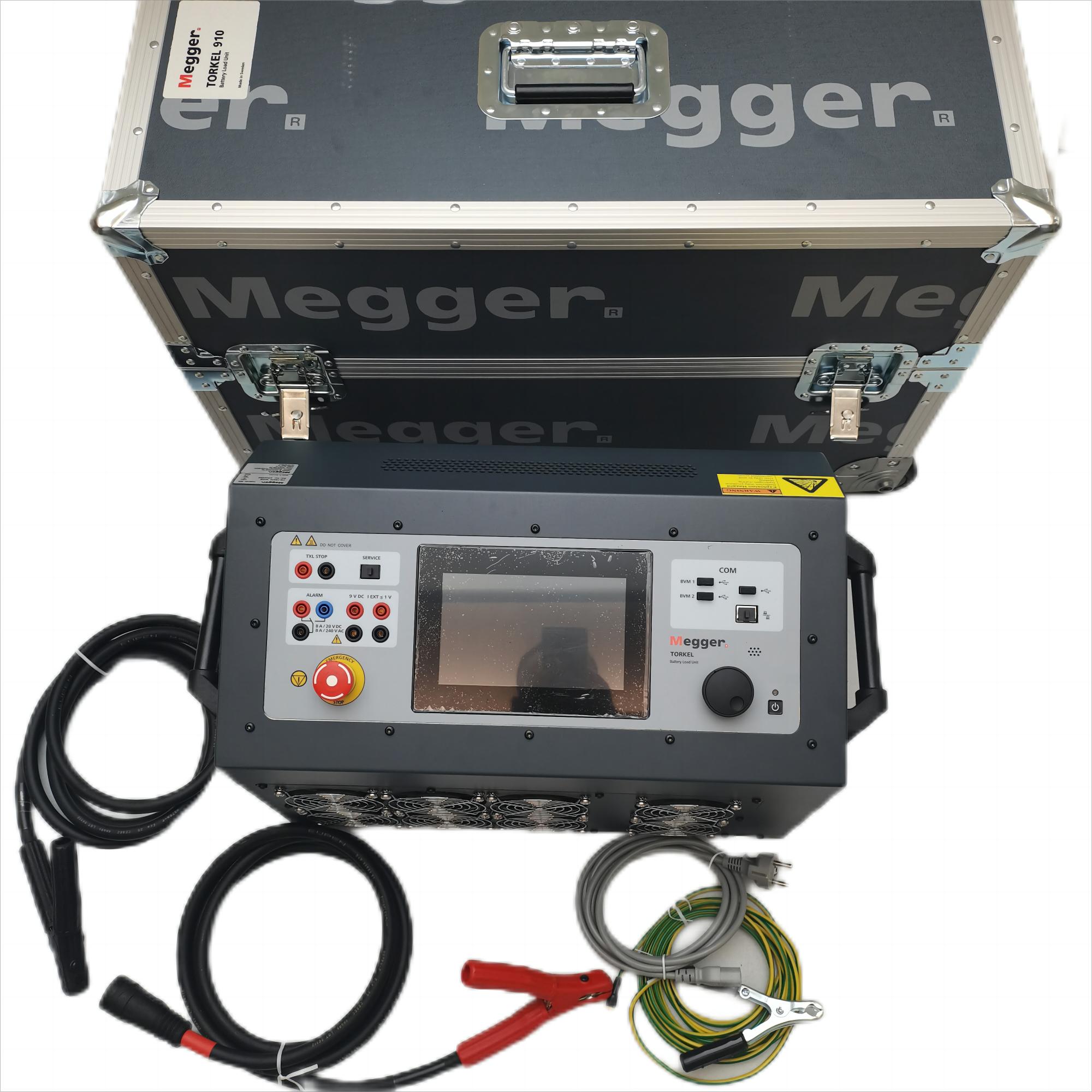

Megger TORKEL 910 Battery Load Unit Tester

Made for use in high voltage substations and industrial environments, Megger's TORKEL 910 is a comprehensive testing system used to perform load and discharge testing on battery systems.

The TORKEL 910 is considered the entry-level unit in Megger's TORKEL series; it has maximum current of 110A and maximum voltage of 300V. This model does not come with the BVM voltage monitoring, charging measurements and full reporting functionality which is found on the TORKEL 930 and 950.

Testing with the TORKEL 910 is performed directly on batteries without disconnection from the system the battery powers. Using a DC clamp-on probe, the TORKEL measures the total battery current while regulating it at a constant level. Battery systems can be plus or minus grounded, or free floating.

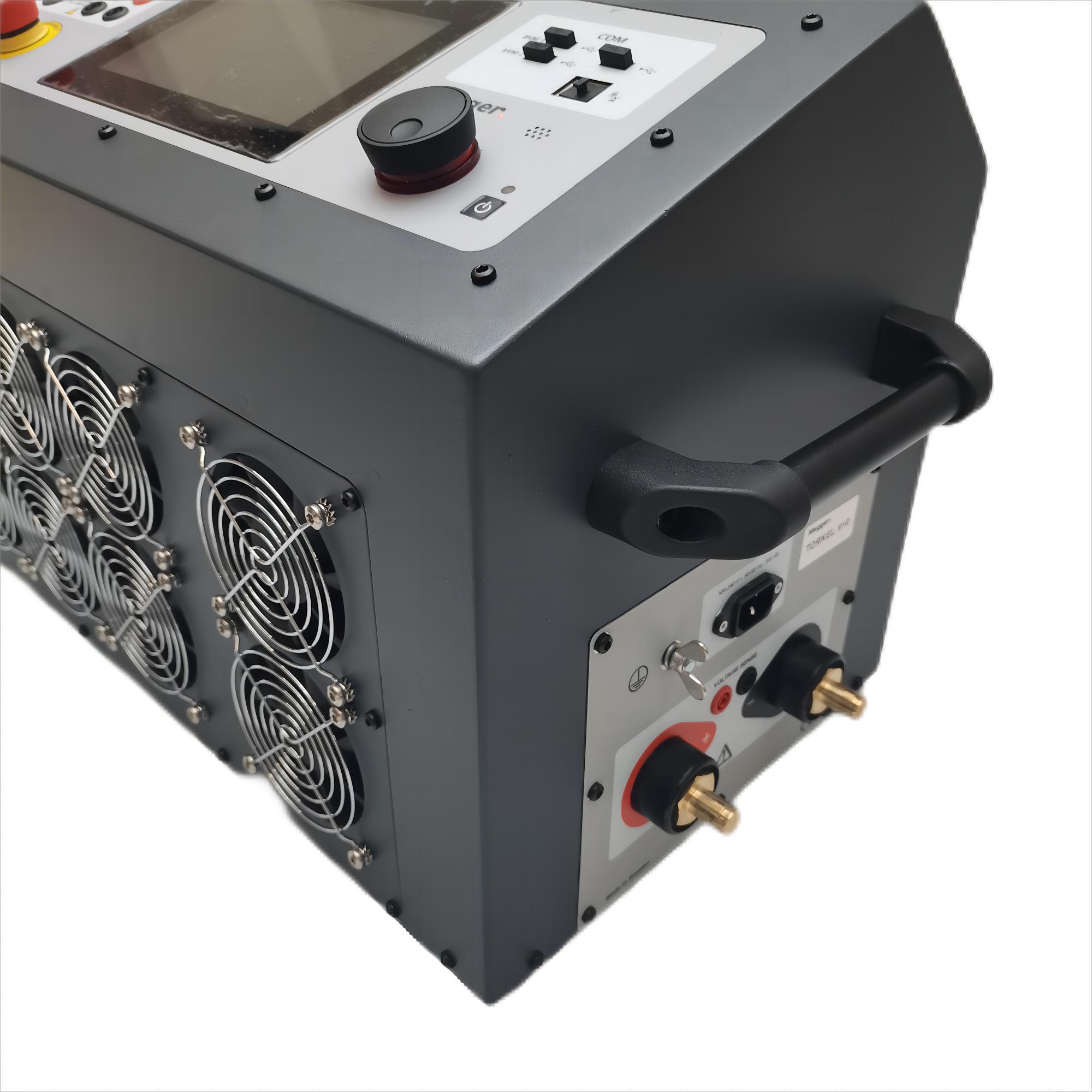

Using Megger's dynamic discharge technology, the TORKEL 910 delivers constant, reliable power at all voltages. The system is also completely made with safety in mind, with an emergency stop button, spark-free connections and intelligent fan system which detects blocked air flow.

The TORKEL 910 battery load tester includes a simple and responsive touch screen for adjusting settings and capturing findings.

Features

Perform load and discharge testing on battery systems to determine actual capacity

Allows batteries to be tested while still in service

Dynamic discharge technology gives full power at all voltages

Maximum current of 110A

Maximum voltage of 300V

Built-in touchscreen for easy operation

Safety built-in with emergency stop button, spark-free contacts and blocked airflow detection

Real-time monitoring of battery status during the testing procedure
